כרטיס MiniPCIe I/O PCIe full size Serial RS-232 עם 4 יציאות DB9 צ'יפ WCH382L
כרטיס MiniPCIe I/O PCIe full size Serial RS-232 עם 4 יציאות DB9 צ'יפ WCH382L
מק"ט 95278
לא ניתן לטעון זמינות לאיסוף עצמי

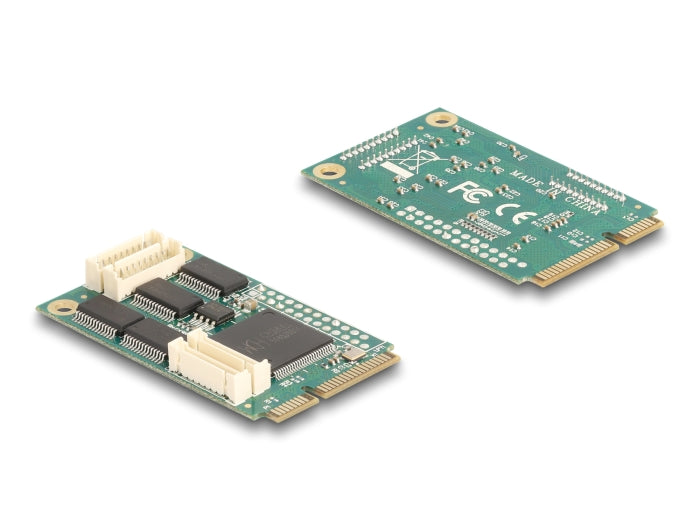

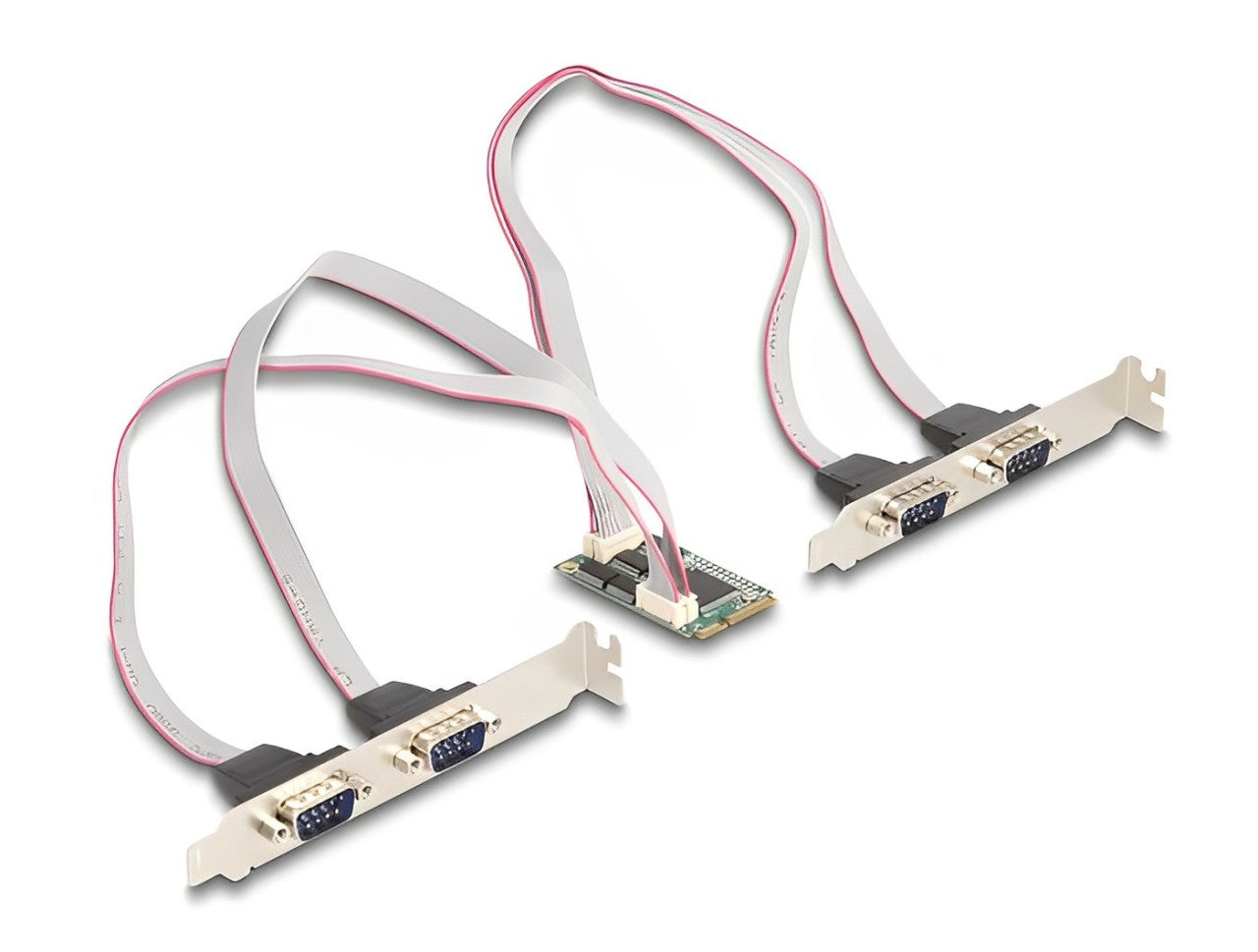

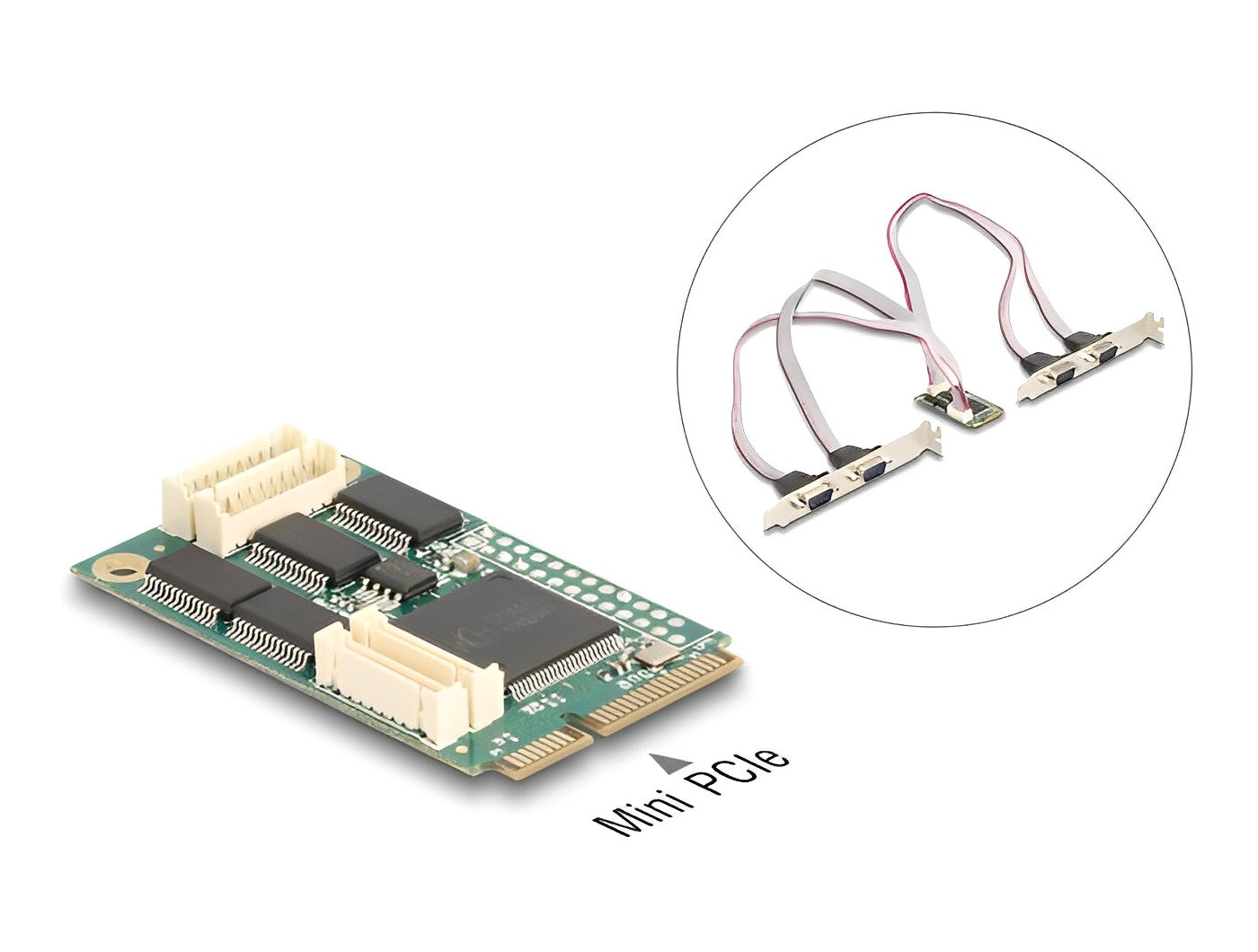

Delock Mini PCIe I/O PCIe full size 4 x Serial RS-232
כרטיס Parallel MiniPCIe מציע 4 יציאות DB9 RS-232.
הכרטיס זה מתאים ליישומים שונים כמו רישום נתונים, מערכות בקרת מכונות, אוטומציה, פיתוח או תקשורת.
יצרן DELOCK גרמניה
פרטים טכניים
חיבורים חיצונים :
4 * Serial D-Sub 9 pin זכר
חיבורים פנימיים :
1 * Mini PCI Express, Rev. 1.2
4 * מחבר 10pin pin header
צ'יפ : WCH382L
Form factor: Mini PCIe full size
Serial specification:
Data transfer rate up to 460.8 Kbps
FIFO: 2 x 256 byte
Databits: 5, 6, 7, 8
Stop bits: 1, 2
Parity: even, odd, none, mark, space
Flow control: none, hardware RTS / CTS, software XON / XOFF
Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
אורך כבל כולל מחברים 25 ס"מ
דרישות מערכת
Windows Server 2022
Motherboard with a free Mini PCIe slot with a PCIe interface
