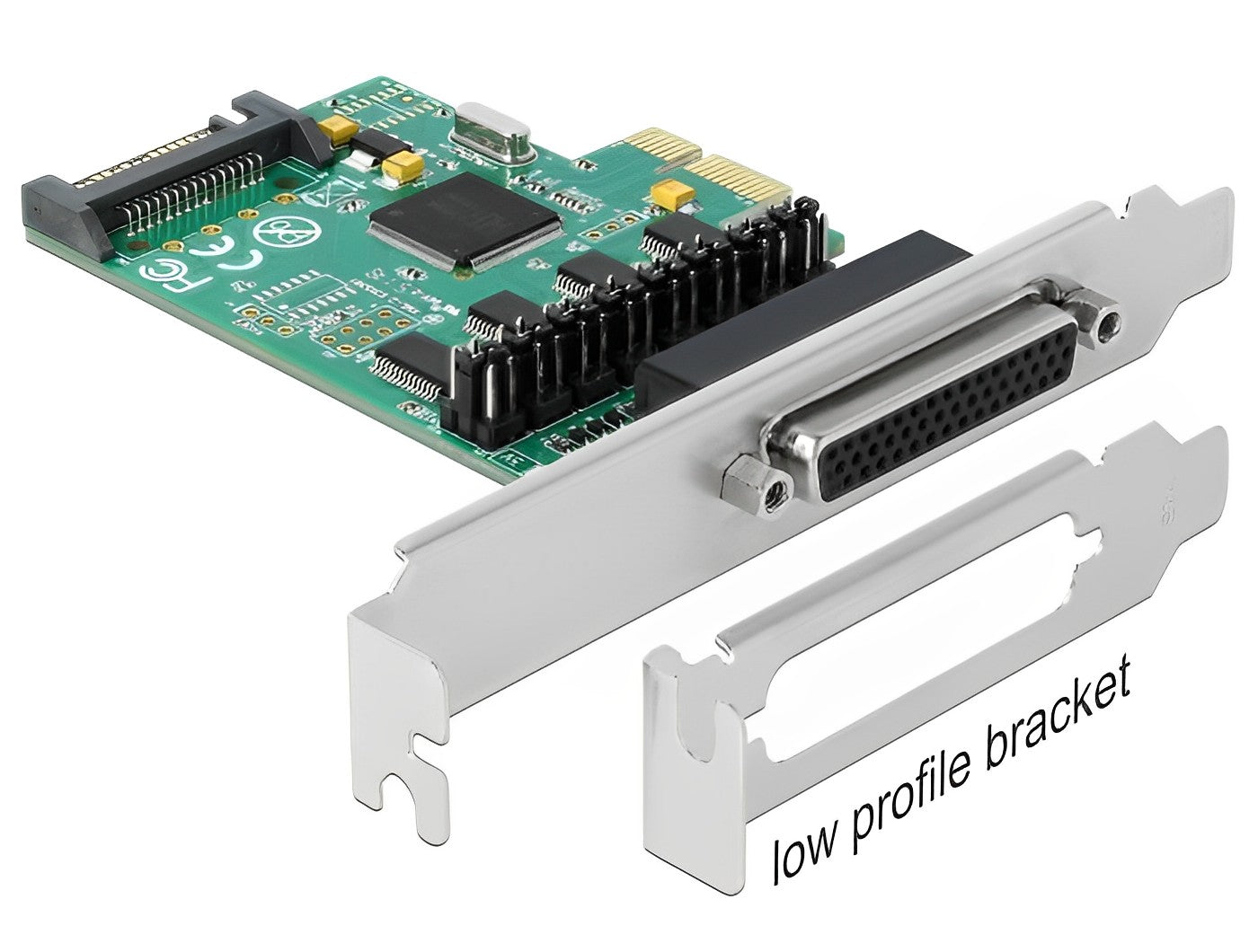

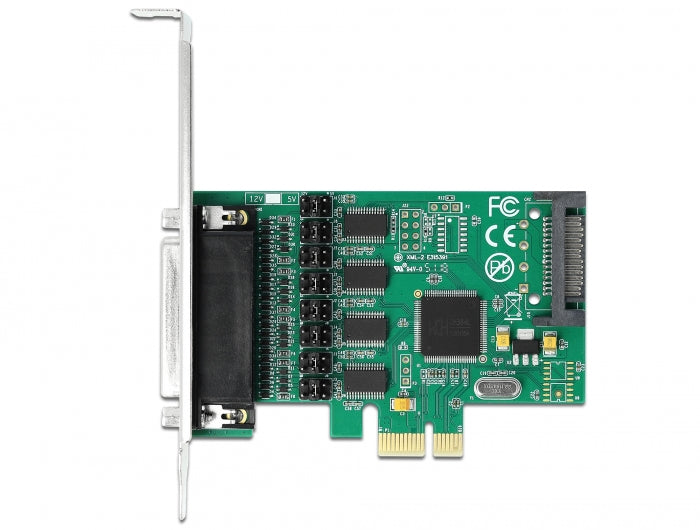

כרטיס PCIe x1 Serial RS-232 Low profile עם 4 יציאות DB9 Voltage supply צ'יפ WCH384L
כרטיס PCIe x1 Serial RS-232 Low profile עם 4 יציאות DB9 Voltage supply צ'יפ WCH384L
מק"ט 89938
לא ניתן לטעון זמינות לאיסוף עצמי
Delock PCI Express Card to 4 x Serial RS-232 with voltage supply

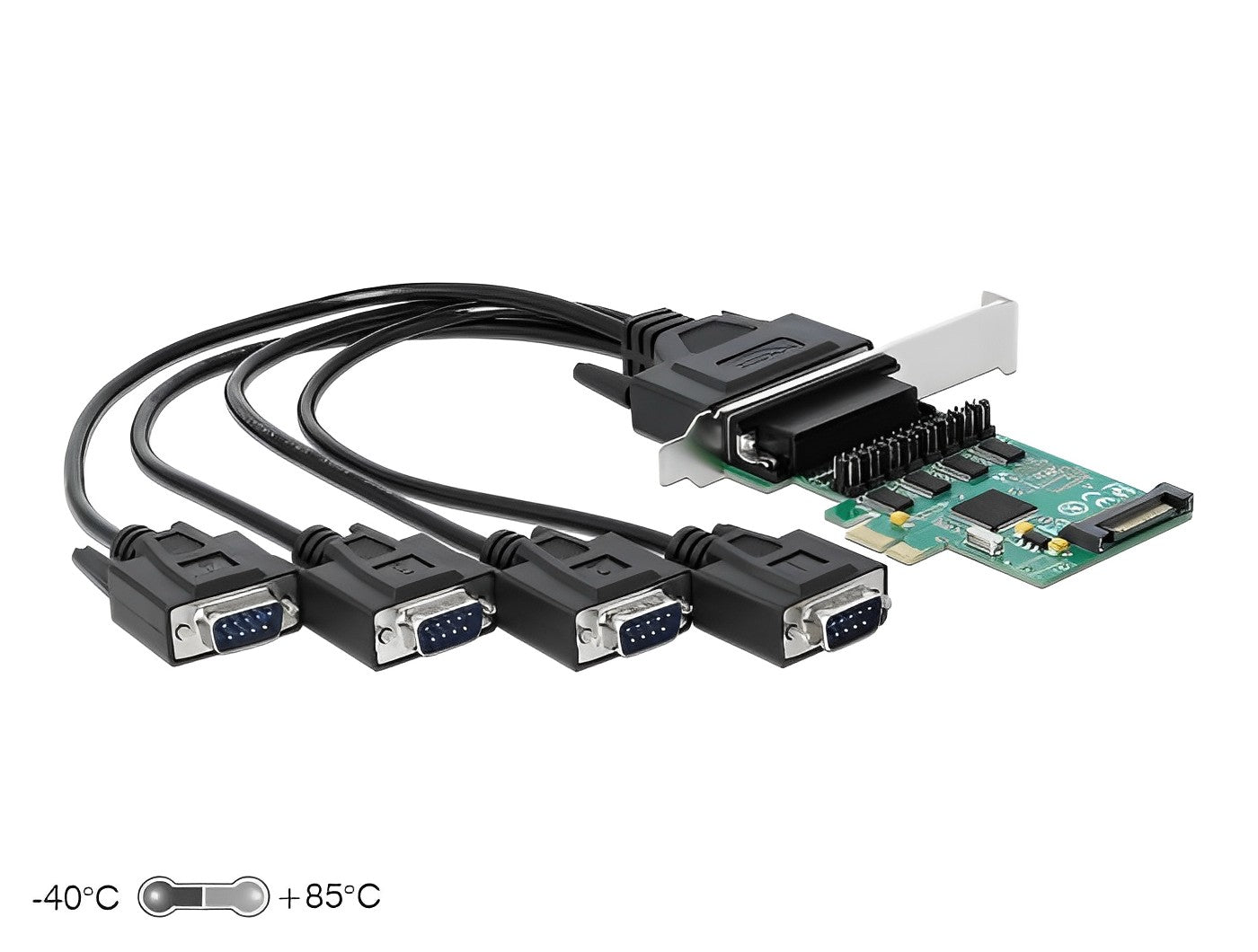

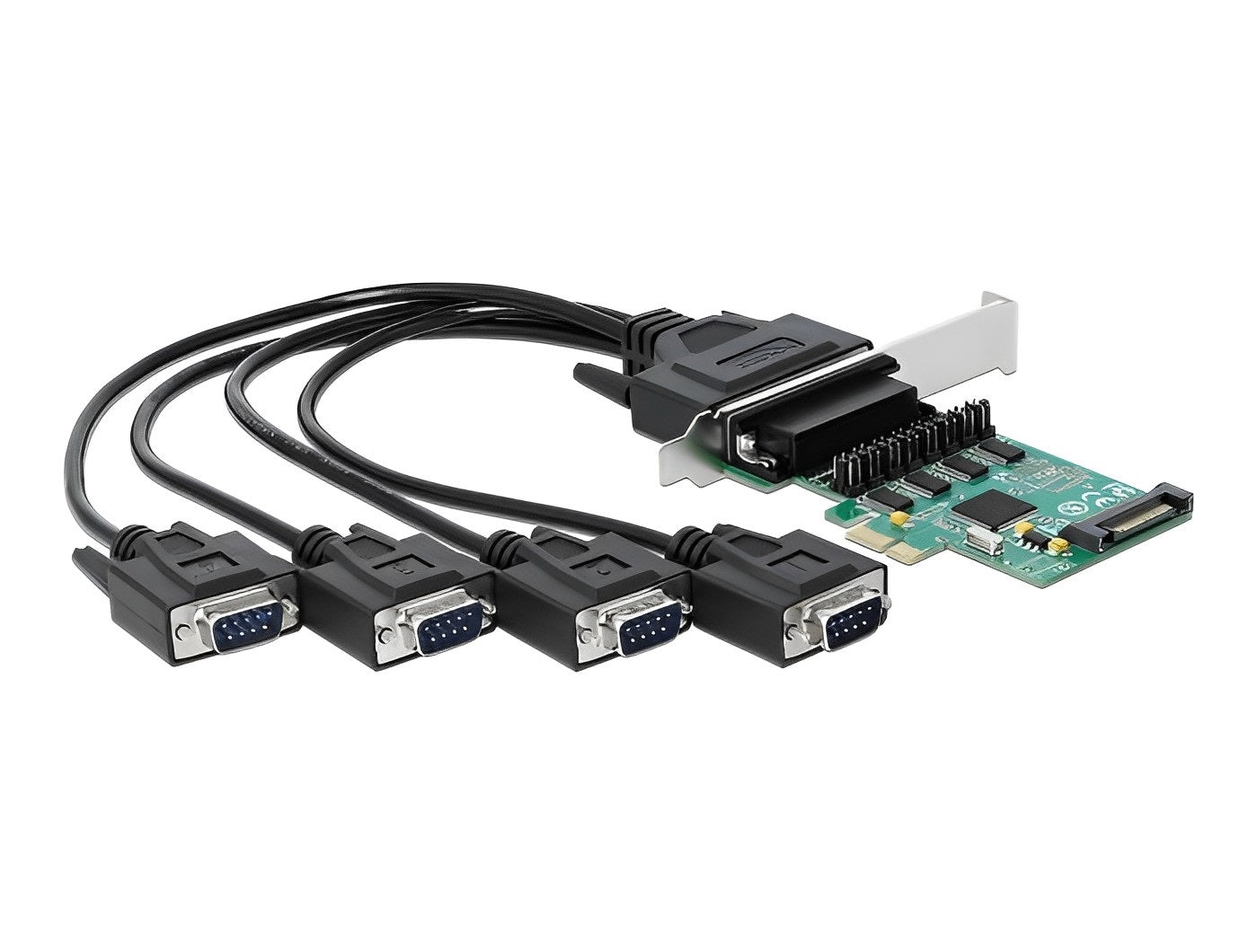

כרטיס Serial RS-232 מציע 4 יציאות DB9 RS-232 חיצוניות.
הכרטיס זה מתאים ליישומים שונים כמו רישום נתונים, מערכות בקרת מכונות, אוטומציה, פיתוח או תקשורת.
בשל טווח טמפרטורות רחב ניתן להשתמש בכרטיס זה באזור התעשייה.
ניתן להגדיר מתח 5 או 12 וולט לכל היציאת DB9 בנפרד.
יצרן DELOCK גרמניה
פרטים טכניים
חיבורים חיצונים : 1 * DB44 נקבה
חיבורים פנימיים :
1 * PCI Express x1, V1.1
1 * SATA מחבר חשמל 15 פינים
תקן : Serial RS-232
צ'יפ : WCH384L
קצב שידור עד : 460.8Kbps
תואם ל- 16C950 UART
FIFO: 256 byte
Databits: 4, 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity: even, odd, none, mark, space
Flow control: none, hardware RTS / CTS, software XON / XOFF
טמפרטורה תפעולית : 40°C ~ +85 °C-
ניתן להגדיר מתח 5 או 12 וולט
לכל היציאת DB9 בנפרד (pin 1 or 9)
Electrical power per port: 10 watt (5 V / 2 A)
Electrical power per port: 24 watt (12 V / 2 A)

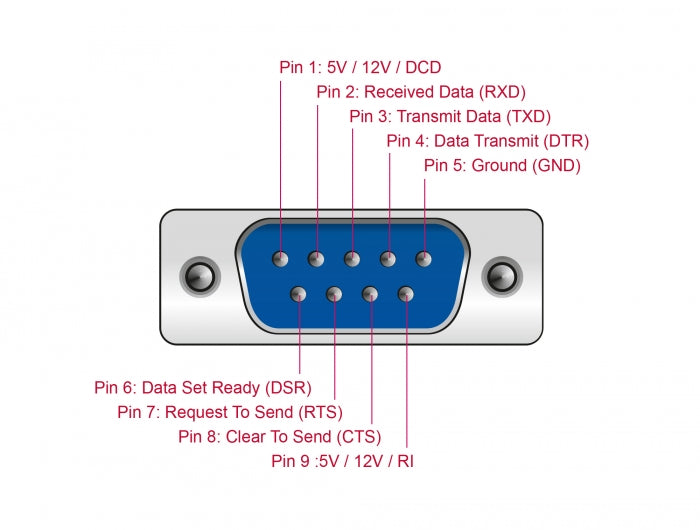

Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
דרישות מערכת
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express slot
Power supply with a free SATA power connector
