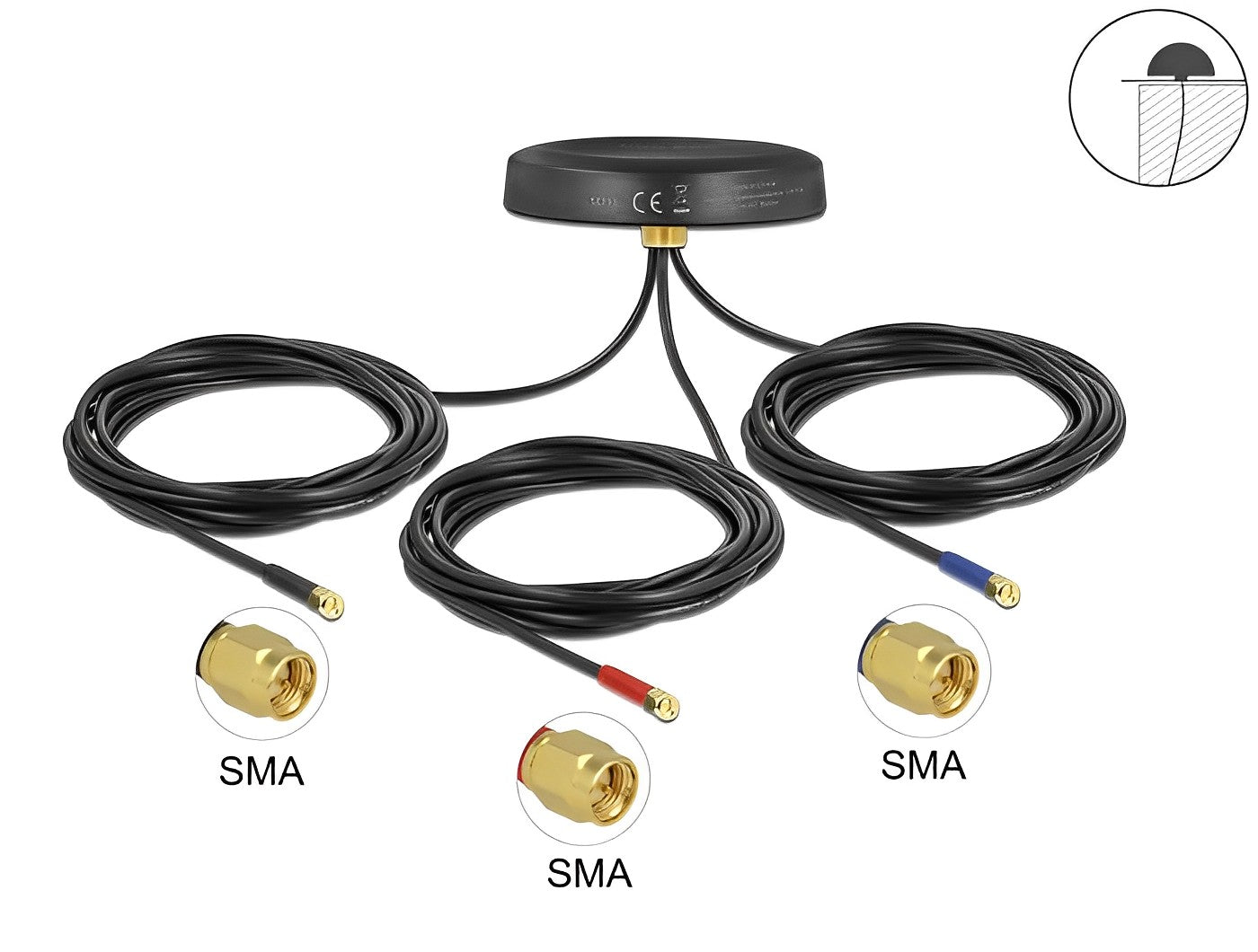

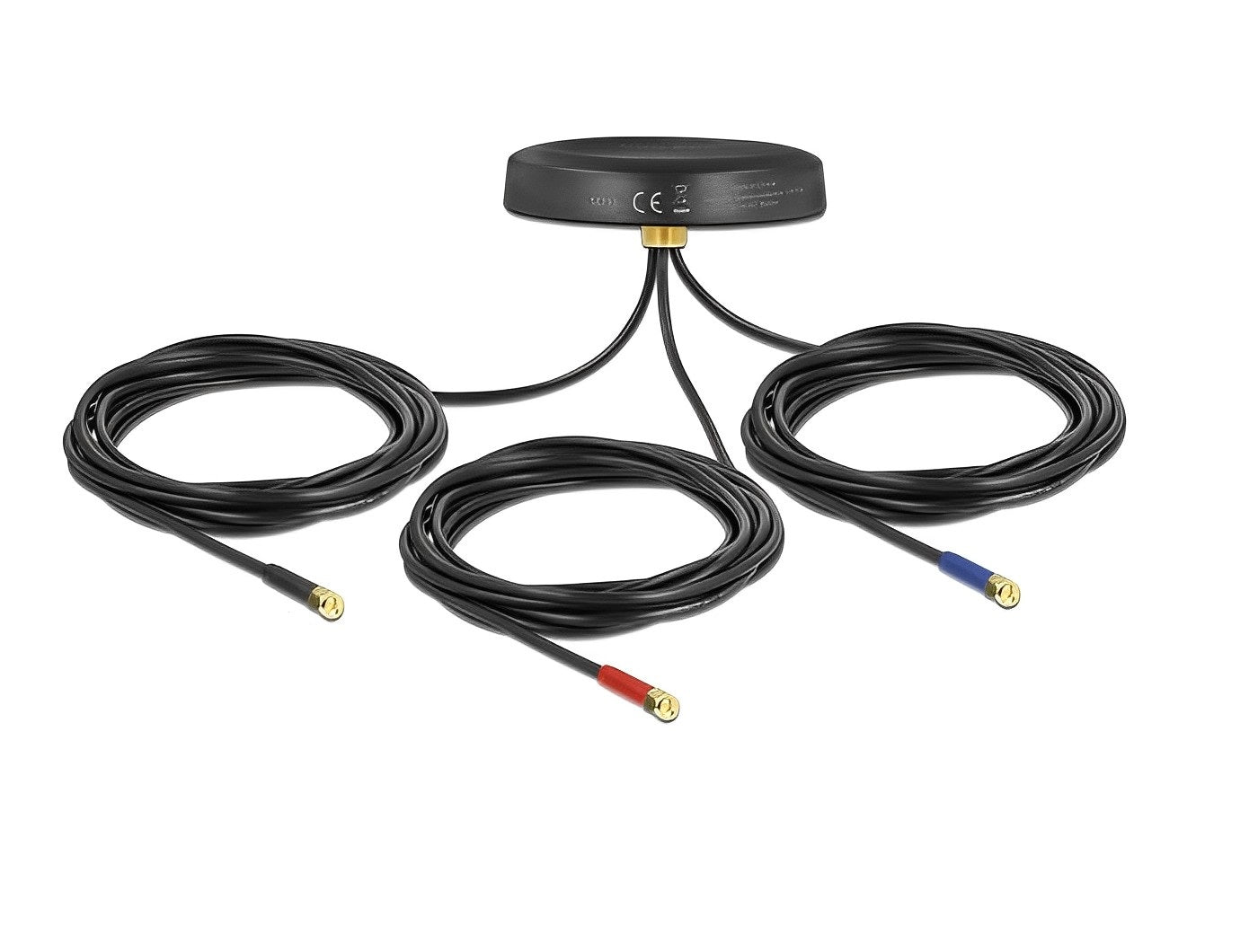

אנטנה כלל כיוונית Multiband LTE UMTS GSM GNSS חיצונית IP67 עם 3 מחברים SMA plug

LTE GSM UMTS:
Frequency range:
0.698 - 0.960 GHz
1.710 - 2.700 GHz
GSM / UMTS / ZigBee / Z-Wave / LoRa / NB-IoT / WLAN 2,4 GHz / Bluetooth
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR: 2.5
Polarisation: linear
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm
Cable attenuation: 1.5 dB @ 1.5 GHz per meter

GNSS:
Frequency range:
GNSS: L1, 1.57542 GHz, 1.598 - 1.610 GHz
Antenna gain: 3 dBi
Impedance: 50 Ohm
VSWR: 2.5
Polarisation: RHCP
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm
Cable attenuation: 1.5 dB @ 1.5 GHz per meter

LNA GNSS:
Frequency range:
GNSS: L1, 1.57542 GHz
Gain: 28 dBi
VSWR: 2.0
Impedance: 50 Ohm
Operating voltage: 2.2 - 5.0 V
Current consumption: 5 - 15 mA
Screw-on mounting
