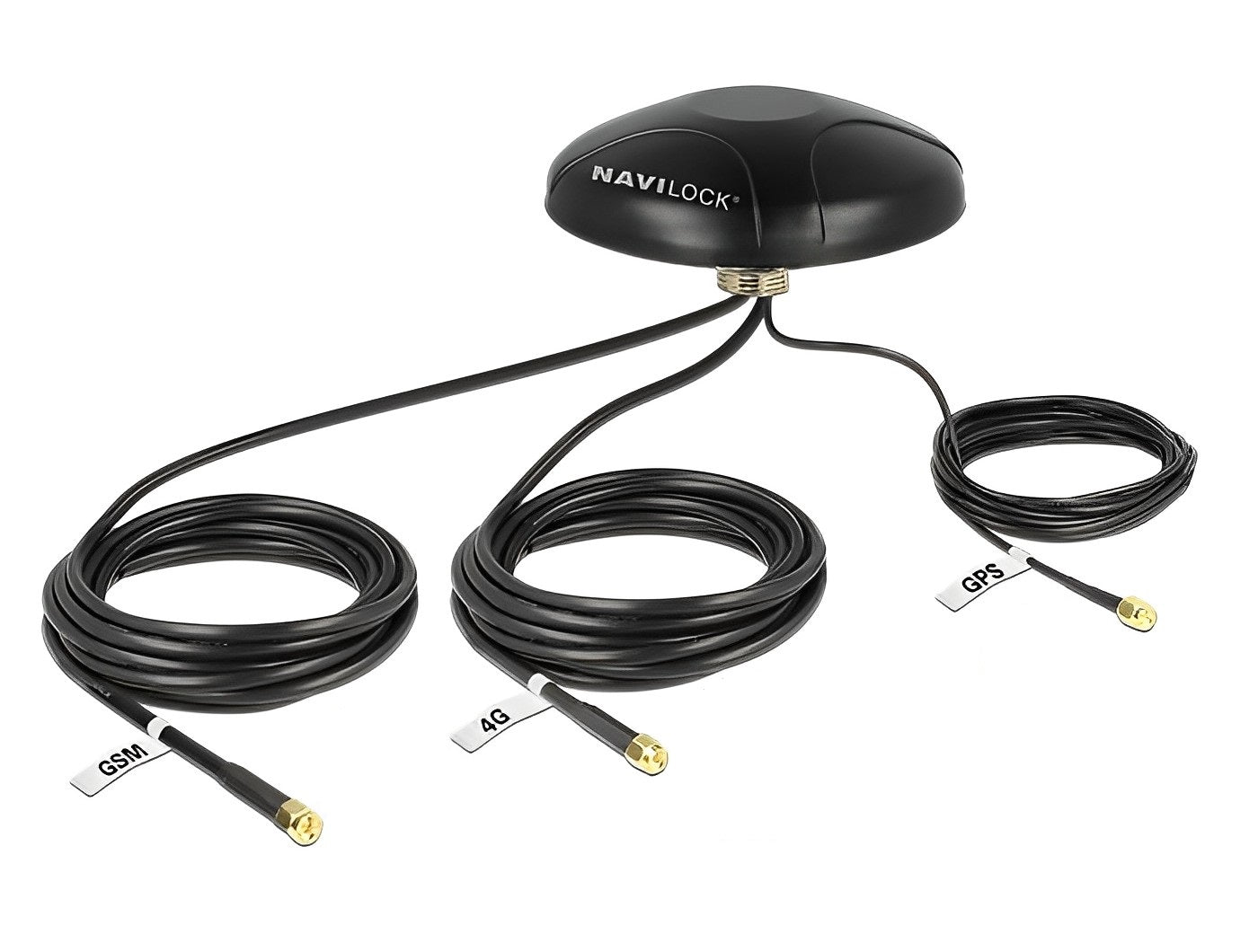

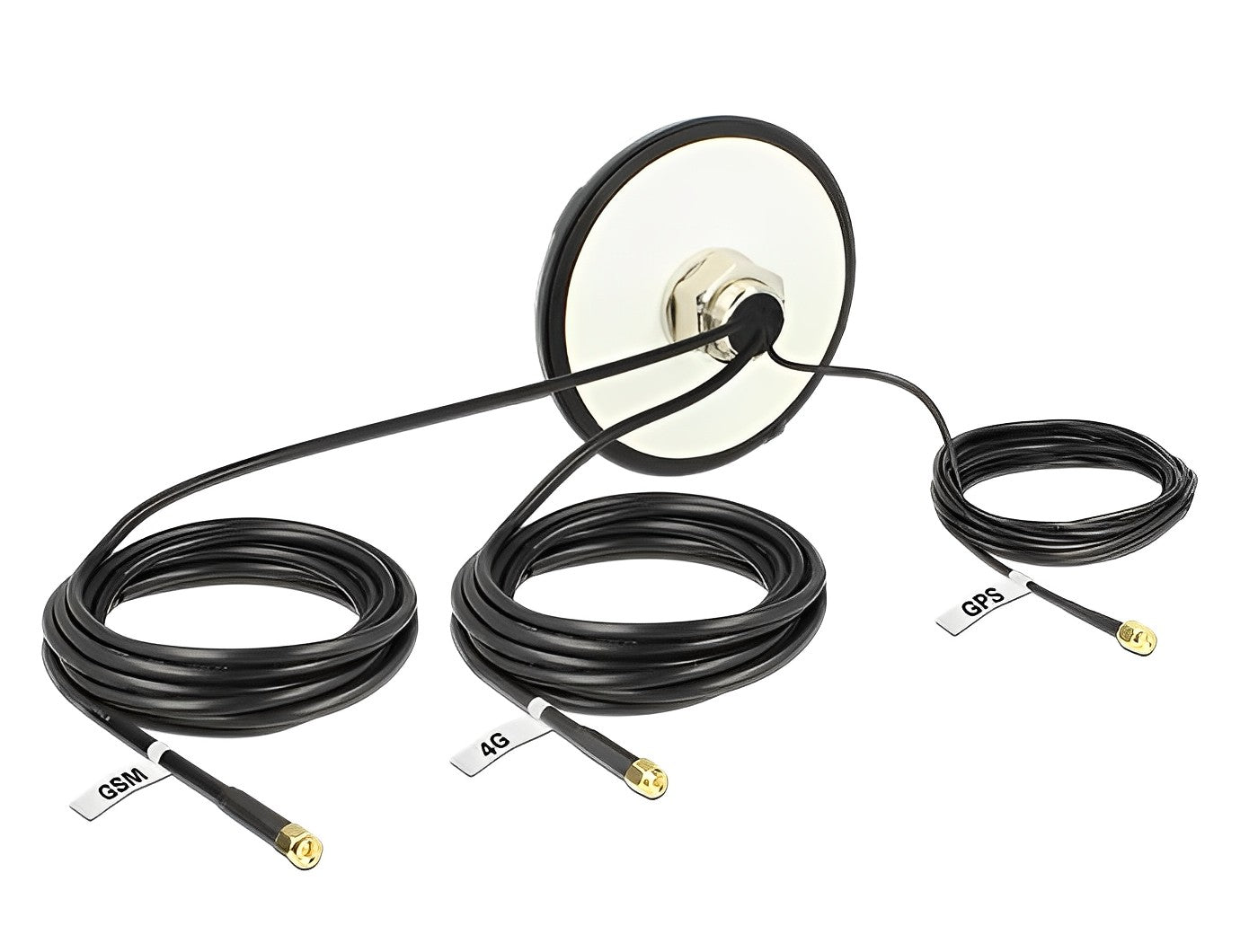

GNSS:
Frequency range:
GPS: L1, 1.57542 GHz
GALILEO: E1, 1,57542 GHz
Antenna gain: 4 dBi
VSWR: 2.5
Impedance: 50 Ohm
Polarisation: RHCP

LNA GPS:
Frequency range:
GPS: L1, 1.57542 GHz
GALILEO: E1, 1,57542 GHz
Gain: 28 dBi
Voltage: 2.2 - 5.0 V
Current: 5 - 15 mA
VSWR: 2.0
Impedance: 50 Ohm
Cable attenuation:
1.5dB @ 1.5 GHz per meter
Cable diameter: ca. 2.7 mm

כבל coaxial RG-174 אורך 3 מטר

LTE:
Frequency range:
0.698 - 0.960GHz
1.710 - 2.700GHz
LTE Band: 1-10/ 12-20/ 23/ 25-30/ 33-41
GSM / UMTS / LoRa 868 MHz, 915 MHz / ZigBee / Z-Wave / WLAN 2.4 GHz / Bluetooth
Antenna gain: 3 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.5
Cable attenuation:
0.6dBi @ 1 GHz per meter
Cable diameter: ca. 4.95 mm

GSM UMTS:
Frequency range:
0.824 - 0.960GHz
1.710 - 2.170GHz
GSM / UMTS / Z-Wave
Antenna gain: 3 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.5
Cable attenuation:
0.6dBi @ 1 GHz per meter

כבל coaxial RG-58/U אורך 3 מטר
